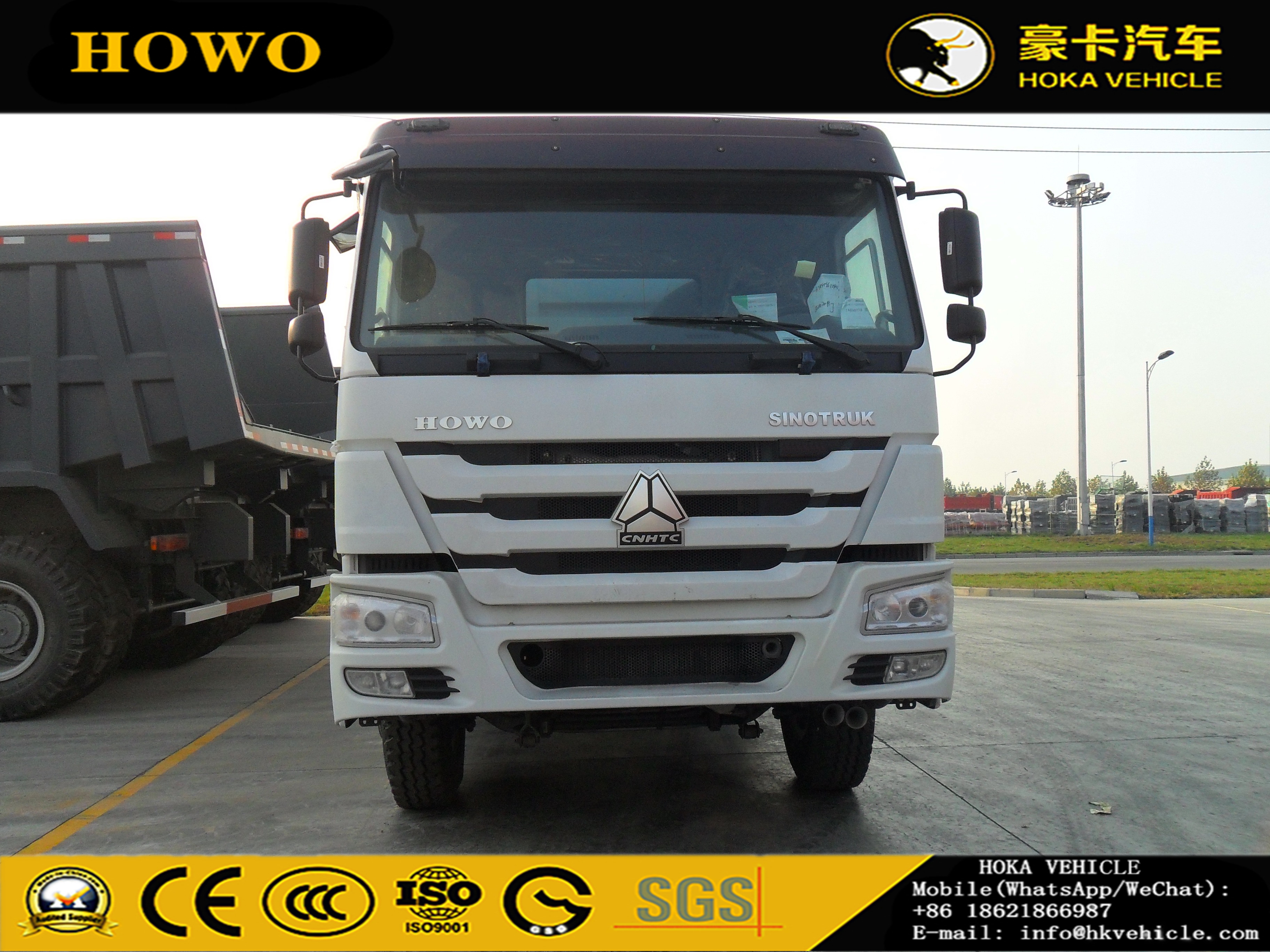

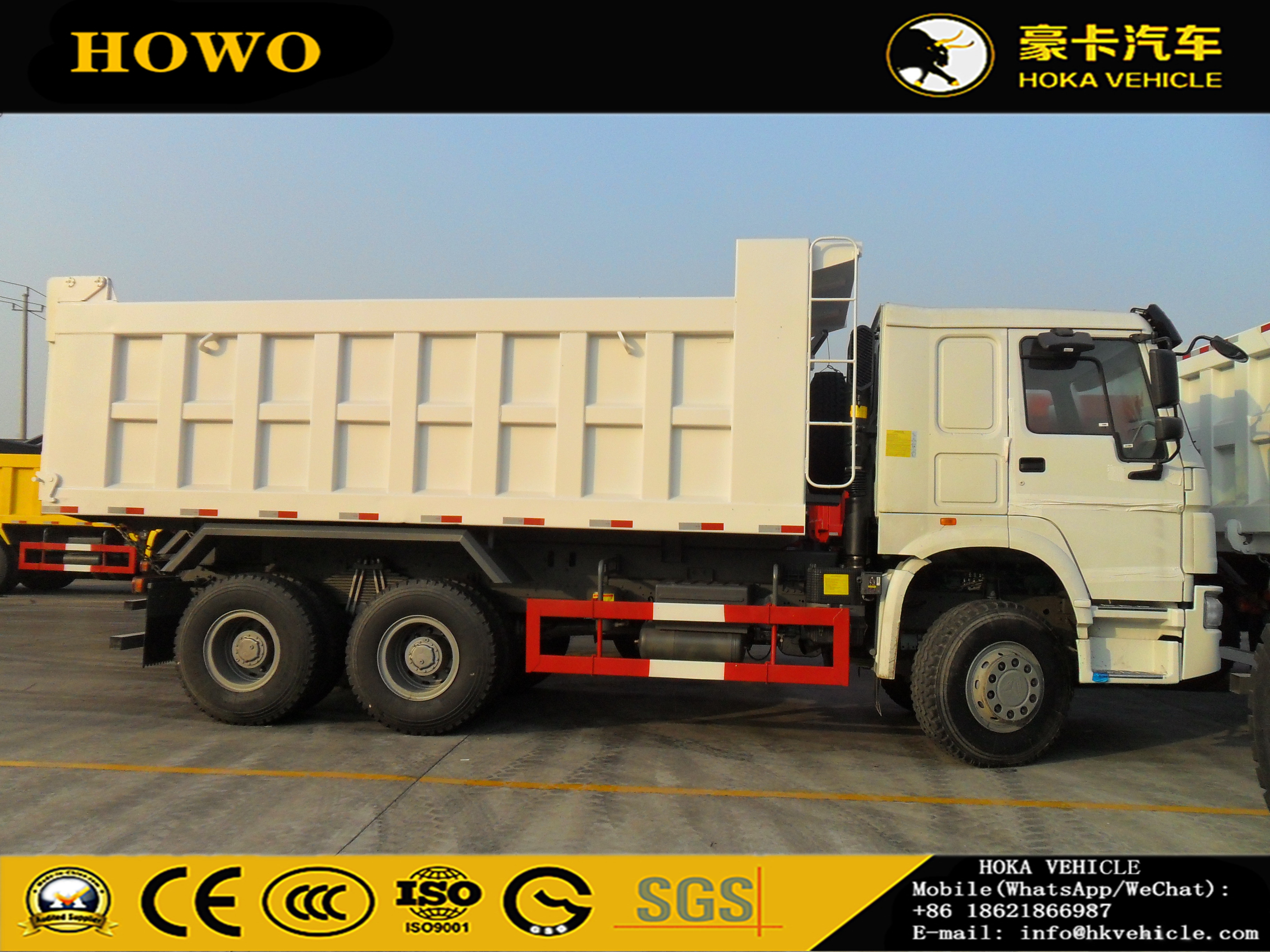

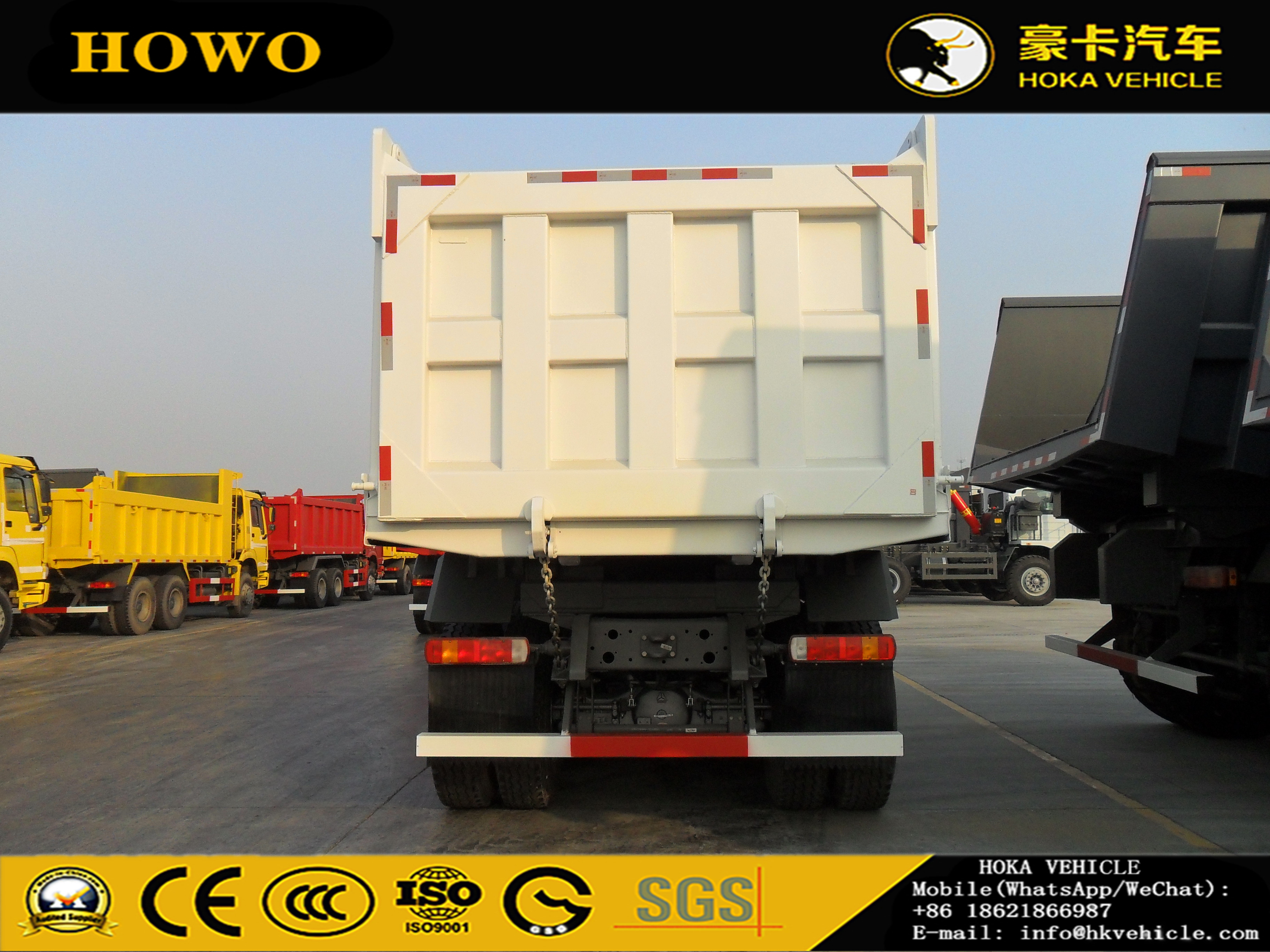

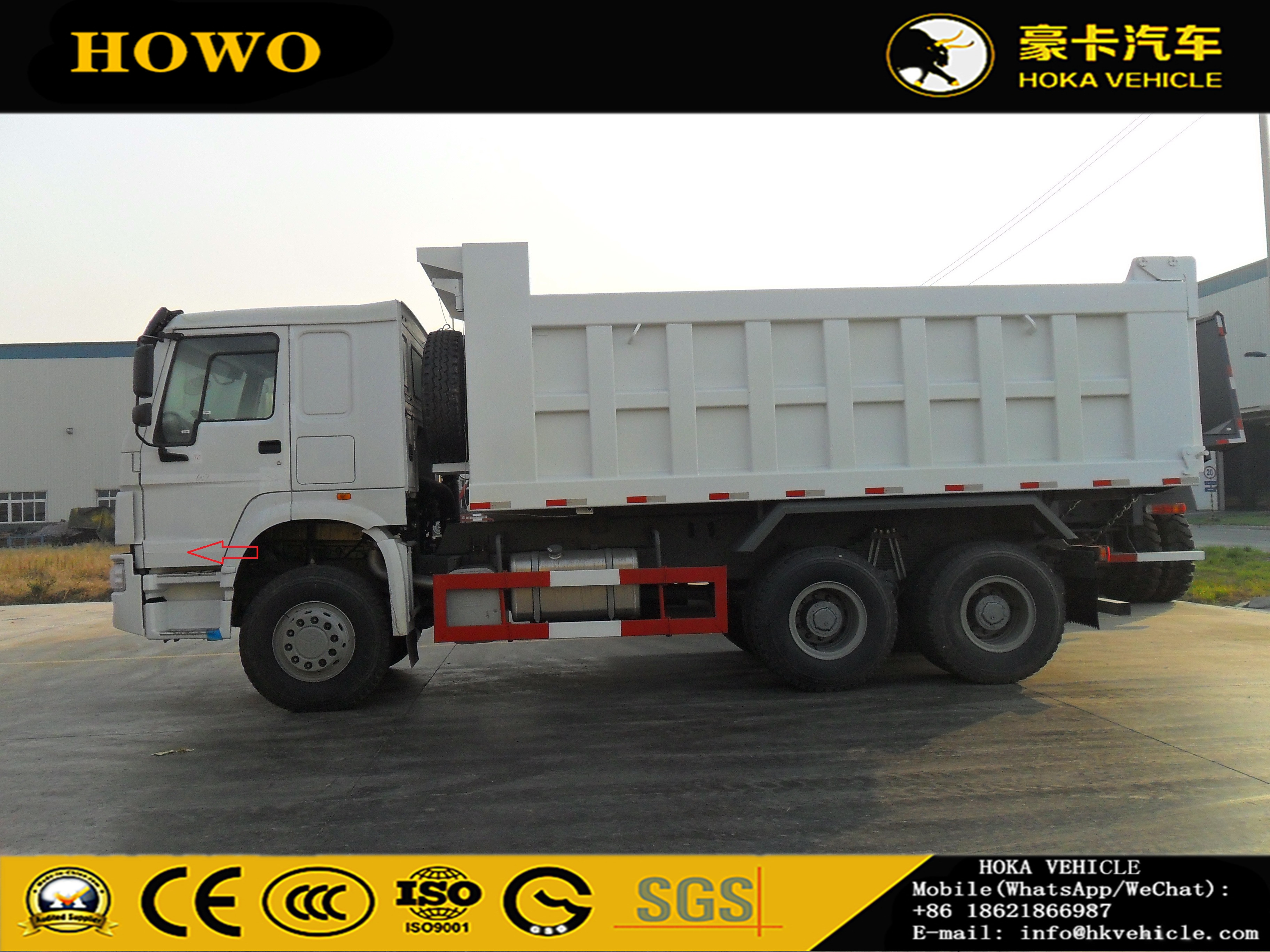

SINOTRUK HIOWO 6X4 380HP EURO IV DUMP TRUCK

Model

ZZ3257N3847D1

Cabin

HOWO long cabin, with two seats, one bed, with Air Conditioner

Engine

Make

SINOTRUK

Model

D10.38-40, Euro IV emission standard

Horse Power (Hp/rpm)

380/2000

Max.Toruqe(Nm/rpm)

1560/1200-1500

Displacement(L)

9.726

Type

DIESEL, 6-cylinder in-line with water cooling, intercooling and turbo-charging

Transmission

HW19710, 10 speeds forward and 2 speed reverse.

Front Axle

HF9(9T), Steering with double T-cross section beam

Driving Axle

HC16(16T), Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles

Ratio: 5.73  Option: 6.72

ratio: 6.833

Suspension

Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer

Steering System

ZF8118, Hydraulic steering with power assistance

Brake System

Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake

Tire

12.00R20, all steel radial tires

Fuel Tank Capacity (L)

300L Diesel Tank

Electrics

Operating voltage: 24V, negative grounded

Starter: 24V, 5.4Kw

Alternator: 3-phase, 28V, 1500W

Batteries: 2x12V, 165Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Kurb Weight (Kg)

12,150

Gross Vehicle Weight (kg)

41,000

Overall Dimension(L*W*H)(mm)

8545×2496×3386

Body Dimension(L*W*H)(mm)

5800*2300*1500

Wheelbase(mm)

3825+1350

Max. Speed (km/h)

75
