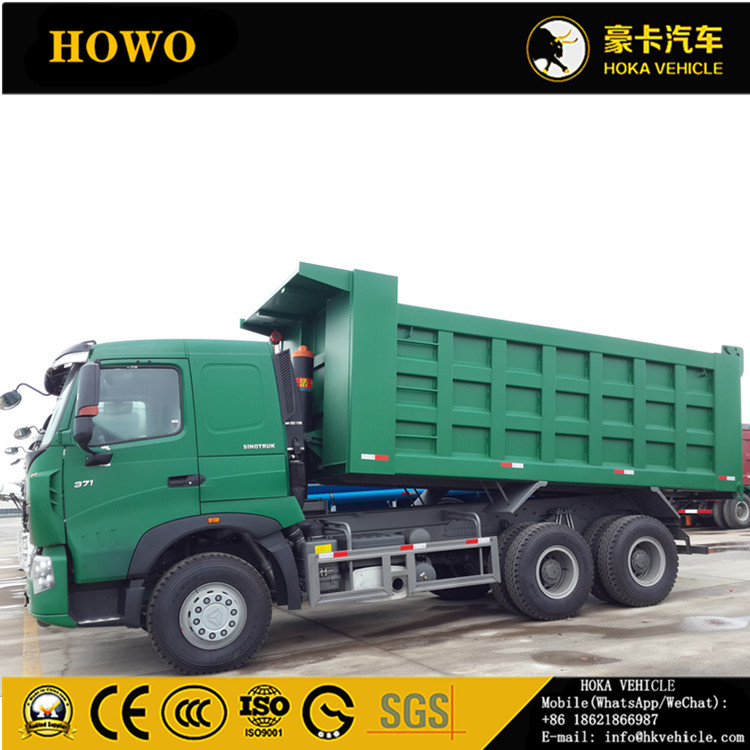

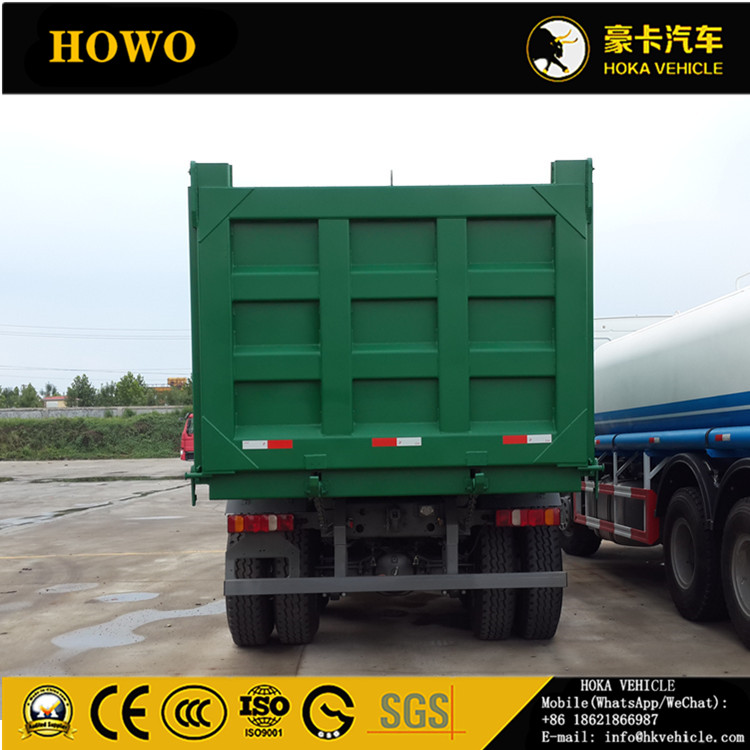

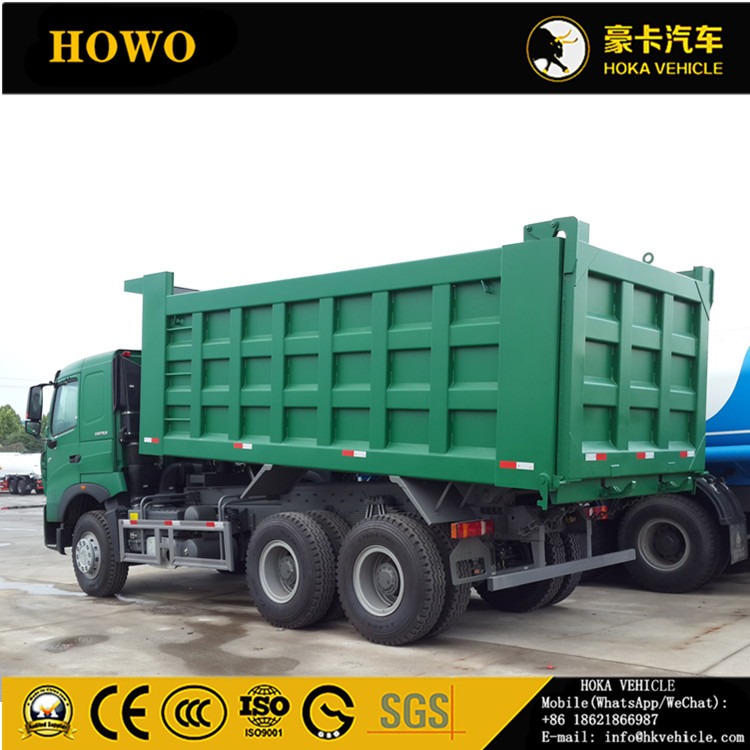

SINOTRUK HOWO A7 6X4 DUMP TRUCK

With its reliable and stable structure design, high bearing capacity, excellent engine force, highly stable performance, and its frame forged in construction and mining industries with adverse operating environments, it is widely used for the short-range earthwork transportation tasks for mines and construction projects. It is world widely accepted by users from South East Asia, Middle East, Africa, South America countries.

Model

ZZ3257N3847N1

Cabin

A7-W low floor lengthening cabin, with two seats, one bed, with Air Conditioner



Engine

Make

SINOTRUK



Model

WD615.47, Euro II emission standard



Horse Power (Hp/rpm)

371/2200



Max.Toruqe(Nm/rpm)

1460/1350-1600



Displacement(L)            L

9.726



Type

DIESEL, 6-cylinder in-line with water cooling, intercooling and turbo-charging

Transmission

HW19710, 10 speeds forward and 2 speed reverse.

Front Axle

HF9(9T), Steering with double T-cross section beam

Driving Axle

HC16(16T), Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles

Ratio: 5.73  Option: 6.72

ratio: 6.833

Suspension

Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer

Steering System

ZF8118, Hydraulic steering with power assistance

Brake System

Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake

Tire

12.00R20

Fuel Tank Capacity (L)

300L Diesel Tank

Electrics

Operating voltage: 24V, negative grounded

Starter: 24V, 5.4Kw

Alternator: 3-phase, 28V, 1500W

Batteries: 2x12V, 165Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Kurb Weight (Kg)

12,490

Gross Vehicle Weight (kg)

41,000

Overall Dimension(L*W*H)(mm)

7934×2496×3386

Body Dimension(L*W*H)(mm)

5600*2300*1500

Wheelbase(mm)

3825+1350

Max. Speed (km/h)

75
