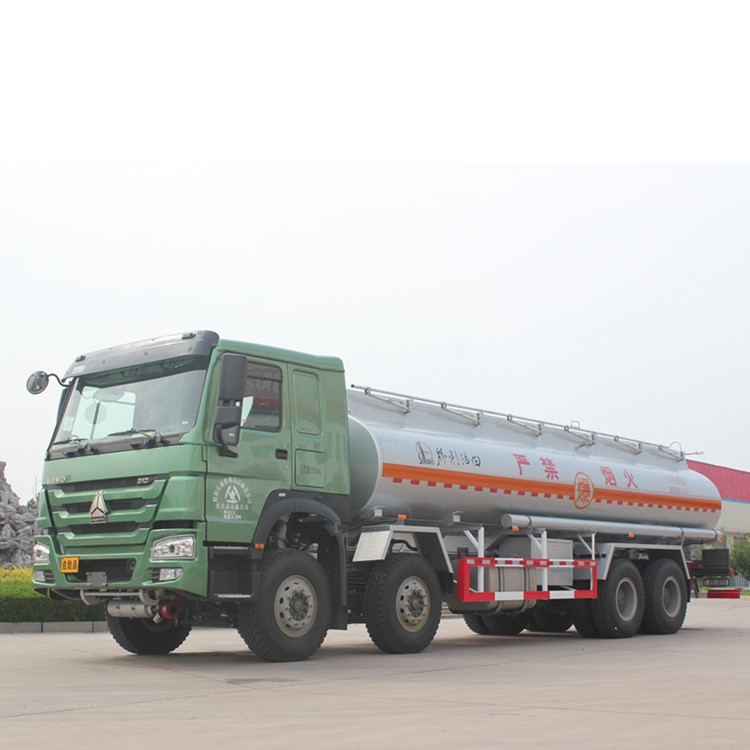

SINOTRUK HOWO 8X4 24CBM FUEL TANKER TRUCK

HOWO truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.

Model

ZZ1317M4667D1

Cabin

HW76 Long Cabin, with two seats and two beds, with Air Conditioner and electric window.



Engine

Model

D10.31-40



Horse Power (Hp/rpm)

310/1900, Euro IV Emission Standard



Max.Toruqe(Nm/rpm)

1390/1200-1500



Displacement              L

9.726





Type

6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke common rail diesel engine

Transmission

HW19710, 10 speeds forward and 2 speeds reverse.

Front Axle

HF9, Steering with double T-cross section beam, Loading Capacity: 2X9,000kgs

Driving Axle

HC16, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. ratio: 4.8. Option: 4.42

Suspension

Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer

Steering System

ZF8118, Hydraulic steering with power assistance

Brake System

Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake

Tire

12.00R20

Fuel Tank Capacity (L)

400L Diesel Tank

Kurb Weight (kg)

14,500

Loading Capacity (kg)

35,500

Gross Vehicle Weight (kg)

50,000

Overall Dimension(L*W*H)(mm)

11984×2500×3280

Tank Capacity(m3)

24

Tank Material

Carbon Steel

Nos of Compartment

Customized design from 1 to 5

Wheelbase(mm)

1800+4600+1350

Max. Speed (km/h)

75
