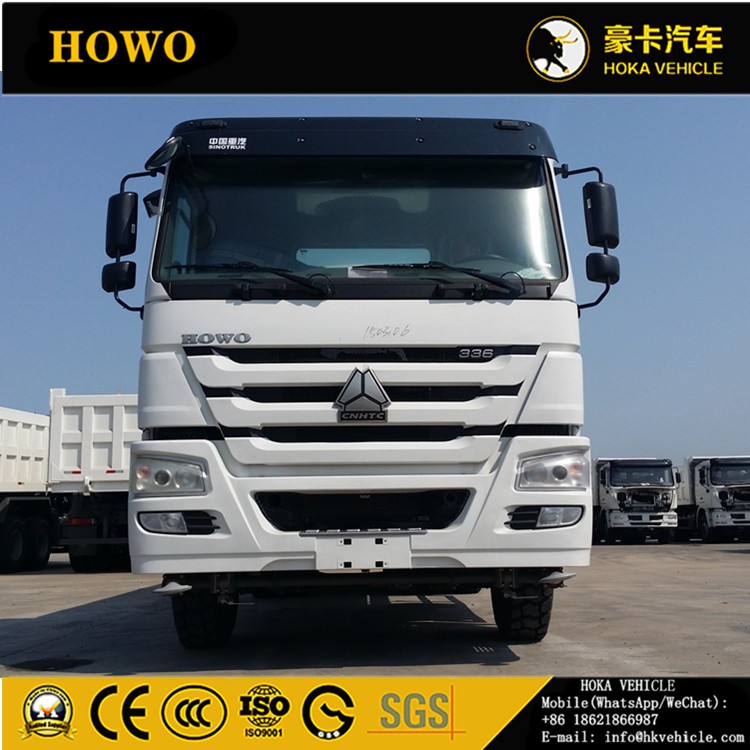

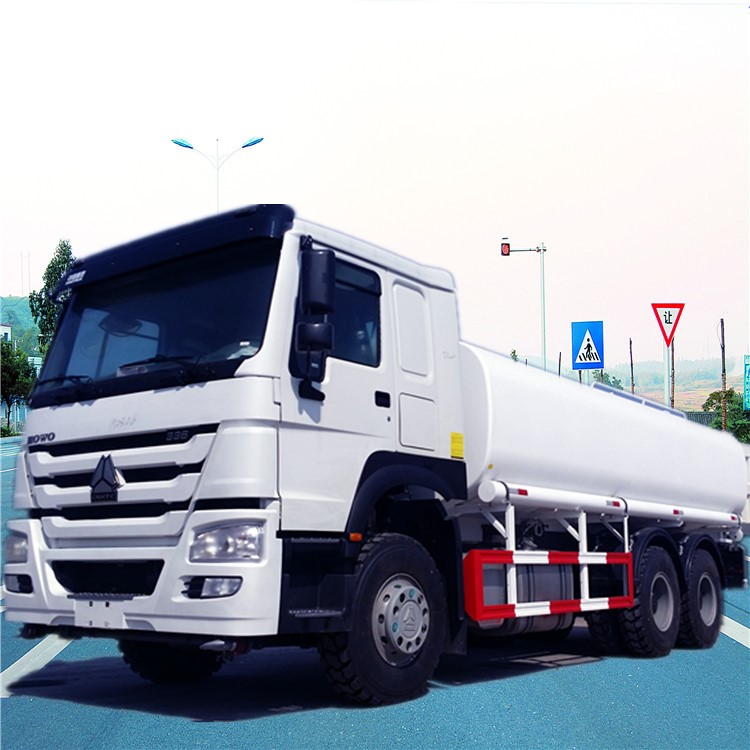

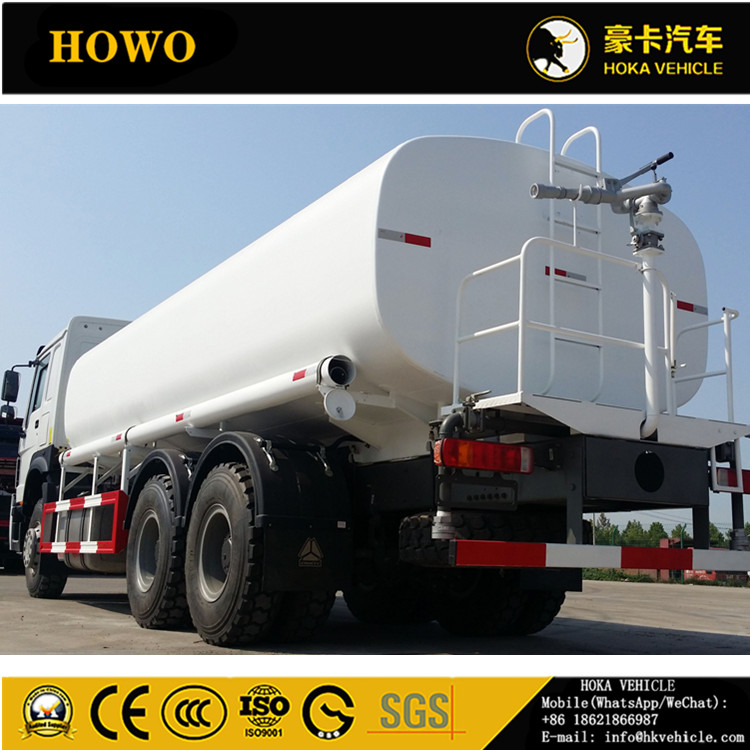

SINOTRUK HOWO 6X4 20CBM WATER TANKER TRUCK

HOWO truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.

Model

ZZ1257N4641W

Cabin

HW76 Long Cabin, with two seats and one bed, with Air Conditioner and electric window.



Engine

Model

WD615.69

Horse Power (Hp/rpm)

336/2200, Euro II Emission Standard

Max.Toruqe(Nm/rpm)

135/1100-1600

Displacement              L

9.726



Type

6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine

Transmission

HW19710, 10 speeds forward and 2 speeds reverse.

Front Axle

HF9, Steering with double T-cross section beam, Loading Capacity: 9,000kgs

Driving Axle

HC16, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. ratio: 4.8. Option: 4.42

Suspension

Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer

Steering System

ZF8118, Hydraulic steering with power assistance

Brake System

Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake

Tire

12.00R20

Fuel Tank Capacity (L)

400L Diesel Tank

Kurb Weight (kg)

13,400

Loading Capacity (kg)

27,600

Gross Vehicle Weight (kg)

41,000

Overall Dimension(L*W*H)(mm)

9600×2500×3200

Tank Capacity(L)

20,000

Tank Material

Carbon Steel

Nos of Compartment

1

Accessories

2 nos of duck-billed sprinklers(in front),

2 nos of cylindrical sprinklers(at rear),

2 nos of 2.5" pressure water discharge,

1 nos of 3" water sucking mouth,

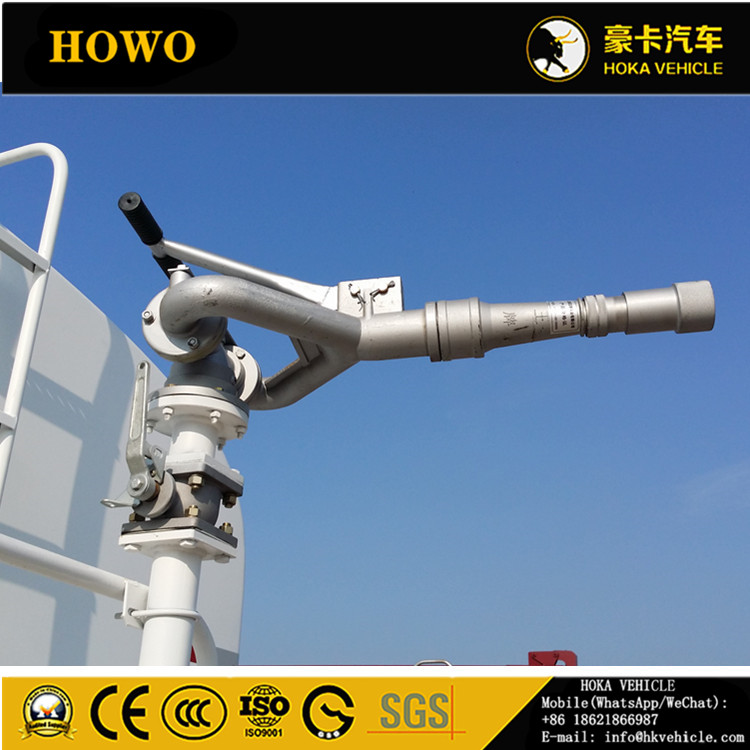

1 nos of high shooting spray rod,

2 nos of 3" 3m pipe,

Wheelbase(mm)

4600+1350

Max. Speed (km/h)

90
