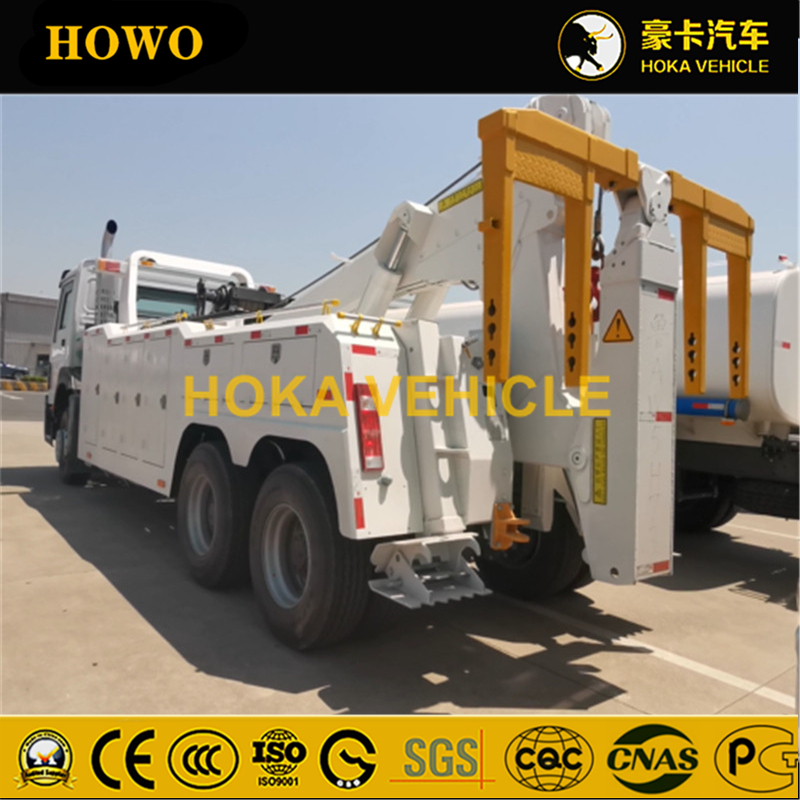

SINOTRUK HOWO 6X4 WRECKER TRUCK
|
Model |
ZZ1257N4647C |
|||
| Kurb weight | 24000 | |||
| GVW |
25000 |
|||
| Dimension(mm) | Length |
11963 |
||
| Width | 2500 | |||
| Height |
3470 |
|||
| Wheelbase(mm) |
5825+1350 |
|||
|
Front wheel span / Rear wheel span (mm) |
2022/2041/1830 |
|||
|
Front Axle/ Rear Axle(mm) |
1500/3288,3263 |
|||
|
Angle of approach / Angle of mosey |
16/14 |
|||
| Drive type |
6*4 |
|||
| Tyre size |
12.00R20 |
|||
|
Max HR(km/h) |
102 |
|||
|
Max GRAB(%) |
30 |
|||
|
Max turning diameter(m) |
23.5 |
|||
|
Min Ground Clearance (mm) |
298 |
|||
| Engine |
type |
WD615.69 |
||
|
power(kW/r/min) |
247/2200 |
|||
|
torque(N·m/r/min) |
1500/1100-1600 |
|||
|
Fuel exhaustion of 100km(L/100km) |
Diesel/35 | |||
|
Rated recovery capacity(kg) |
25000 | |||
| Wrecker capacity | ||||
| Upper type |
YH25DZ2+16T1+40ZT2
|
|||
|
Wheel- lift |
Lifting capacity(full retracted) |
16000/12260 | ||
|
Lifting capacity (fully extended)(kg) |
6900/6900 | |||
|
Distance from tail aboard(mm) |
3260 | |||
|
Wheel-lift stroke(mm) |
1639 | |||
|
Angle of loading pucker(0) |
-10~16
|
|||
|
Angle of pucker(0) |
-10~93 | |||
|
Fully extended max clearance from fork entrance to ground(mm) |
17000 | |||
| Boom |
Max. lifting capacity(kg) |
25000 | ||
|
Lifting capacity (fully retracted 30°)(kg) |
14000 | |||
|
Lifting capacity (fully extended 30°)(kg) |
7300 | |||
|
Boom length(mm) |
5280 | |||
|
Hydraulic cylinder stroke(mm) |
3100 | |||
|
Max. lifting height of hook(mm) |
8800 | |||
|
Max. working radius (mm) |
7800
|
|||
| Stages | 2 | |||
|
Range of elevation(0) |
0~50 | |||
|
Angle of swing(0) |
360 continue swing | |||
| Winch |
quantity (unit) |
2 | ||
|
Per Rated traction force(kN) |
100
|
|||
|
Cable type |
18-6X36WS-FC1870BZS
|
|||
|
cable DIA(mm)
|
18
|
|||
|
cable length(m) |
45
|
|||
|
Min. line speed of winch cable(m/min) |
5
|
|||
| Leg |
front leg type |
open type | ||
|
rear leg type |
l type | |||
|
Transverse span of front legs(mm) |
6042 | |||
|
Transverse span of rear legs(mm) |
4076 | |||
|
Lengthwise span between front legs and rear legs(mm) |
7380 | |||
