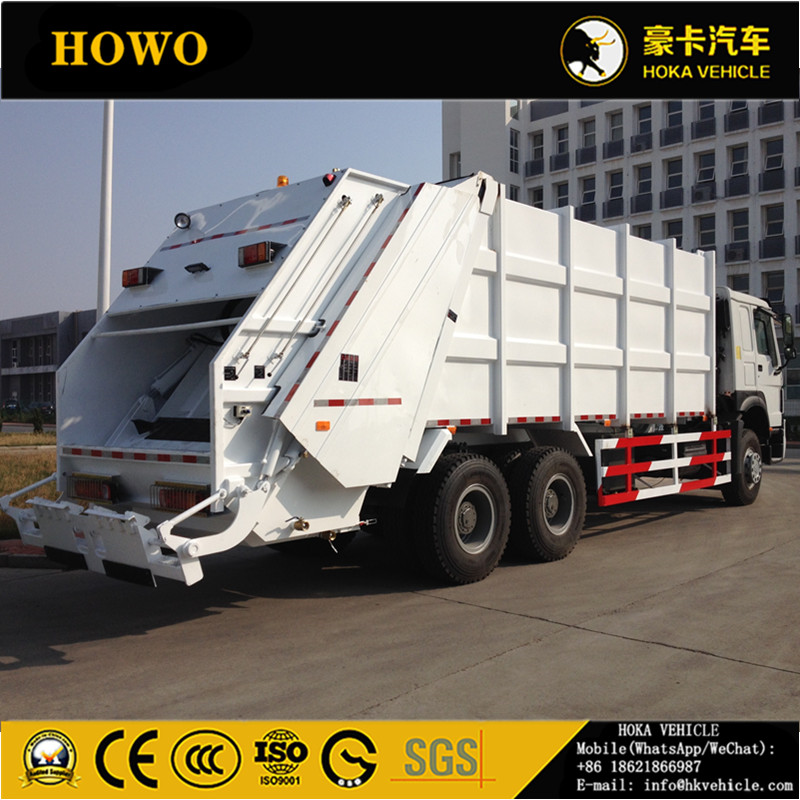

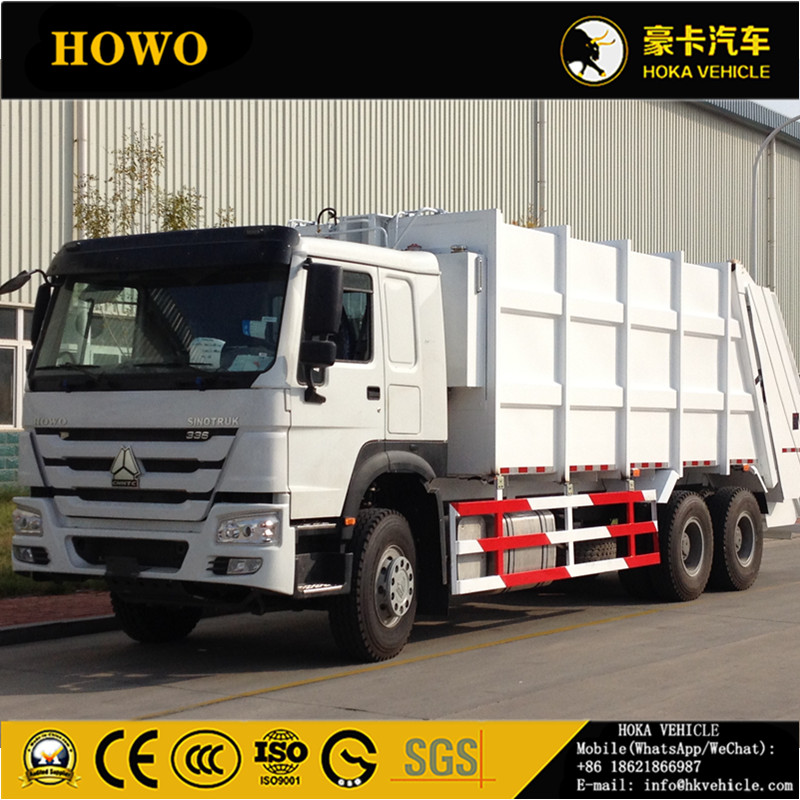

SINOTRUK HOWO 6X4 GARBAGE COMPACTOR TRUCK

HOWO truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.

ꄲNext： SINOTRUK HOWO 6X4 WRECKER TRUCK

Cabin	Driving type 6X4 LHD
Cabin	HW 76 cabin ,two seats,one bed & air conditioner
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	9700X2500X3600
	Wheel base (mm)	4300+1350
	Wheel track (front/rear) (mm)	2022/1830
	Approach/Departure angle(°)	16/15
Weight in KGS	Tare Weight	15630
	payload	25370
	Front axles loading capacity	1x9000
	Rear axles loading capacity	2x16000
Max. driving speed(km/h)		90
Engine	Brand	SINOTRUK
	Model	WD 615.69
	Type	4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	336
	Emission standard	Euro II
Gearbox	HW 19710 ,10 Forwards gear & 2 reverse gear
Tire	12.00R20 all steel radial tire, total 10+1 pieces
Garbage Compactor	Compactor Size: 18cbm Filler Capacity: 2.5cbm Working Pressure: 20 MPa Cycle time of filling: ≤25 Lifting Time of Filler: 8-10s Time of Discharging: ≤40s Front / Rear Sewage Tank volume: 250L/150L Max. Compression Force:>35000Kgs The technical advantages and features of the compressed garbage truck: ¬ 1) The top-loading structural parts are well-selected, which fundamentally guarantees the performance and service life of the whole vehicle. ¬ 2) Padded precision rails and MC nylon sliders make up the most advanced skateboarding pay. ¬ 3) The hydraulic system adopts double pump and double circuit (European popular type) to achieve energy saving and consumption reduction. ¬ 4) The operation mode is electronic control-manual dual use, which is the best solution in the domestic control mode of compressed vehicles. ¬ 5) The key hydraulic components are imported brands with advanced functions and reliable quality. ¬ 6) The sealing system adopts hydraulic automatic locking and sealing mechanism to completely solve the problem of sewage dripping. ¬ 7) Filling the garbage is compressed by two directions, which expands the actual loading capacity. ¬ 8) Configure multi-function manipulators, which can turn 240 liters of two barrels, 1 1 liter trash can, and 800 liter trash cans. ¬ 9) Equipped with a trash can cleaning device, two nozzles are installed in the filler to clean the trash can.
