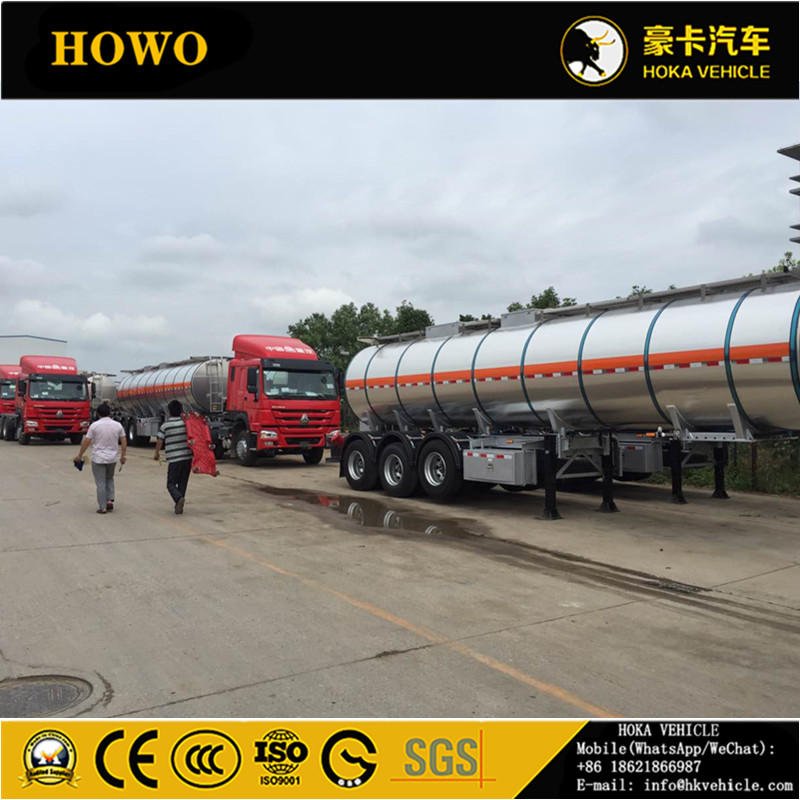

THREE-AXLE 5000 U.S GALLON (19m3) Sulpur Tank Trailer
|
Type |
5000 U.S GALLON (19m³) Sulpur Tank Trailer |
|
|
Tank Body |
Body & Compartment |
Variable Cross-Section Tank, 1 compartment, 19m³+ 5% Vapor Volume. |
|
|
Design Standard |
ADR Standard (Europe). |
|
|
Tank Body |
SS316L, 5mm |
|
|
Dish End |
SS316L, 6mm, D-1600mm & 1800mm |
|
|
Baffle Plate |
SS316L, 4mm, 3 pcs. |
|
Tank Fittings & Piping |
Manhole |
SS316L, 1 pcs. |
|
|
Sluice Valve |
SS316L, 4", with steam heating jacket. |
|
|
Angle Valve |
SS316L, 4". |
|
|
Safty Valve |
SS316L, 4". |
|
|
Pressure Gage |
0-1Mpa, 1 pcs. |
|
|
Testing Pressure |
6 bar |
|
|
Thermometer |
0-200℃, 1 pcs. |
|
Heat-Insulation System |
Insulation Cover |
304 Stainless, 0.7mm |
|
|
Insulation Dish End |
304 Stainless, 3mm |
|
|
Insulation Material |
Fiberglass (50mm) + PU (50mm) |
|
|
Heating Pipe |
SS316L, Seamless Tube, D-60*4. |
|
Runing Gear |
Axle |
FUWA 13 tons Axle, 3 Axle, 2 Axle with ABS. |
|
|
The Suspension System |
The front 1 axle is JOST Mechanical Lifting Suspension; rear 2 axles are Mechanical Suspension with Leaf Spring. |
|
|
Tire |
295/80R22.5, Double coin brand, 12 pcs. |
|
|
Rim |
8.25-22.5, Sunrise brand, Carbon Steel Type, 12 pcs. |
|
|
LandingGear |
JOST, 19". |
|
|
Kingpin |
JOST, 2.0". |
|
|
ABS system |
4S/2M. |
|
Accessories |

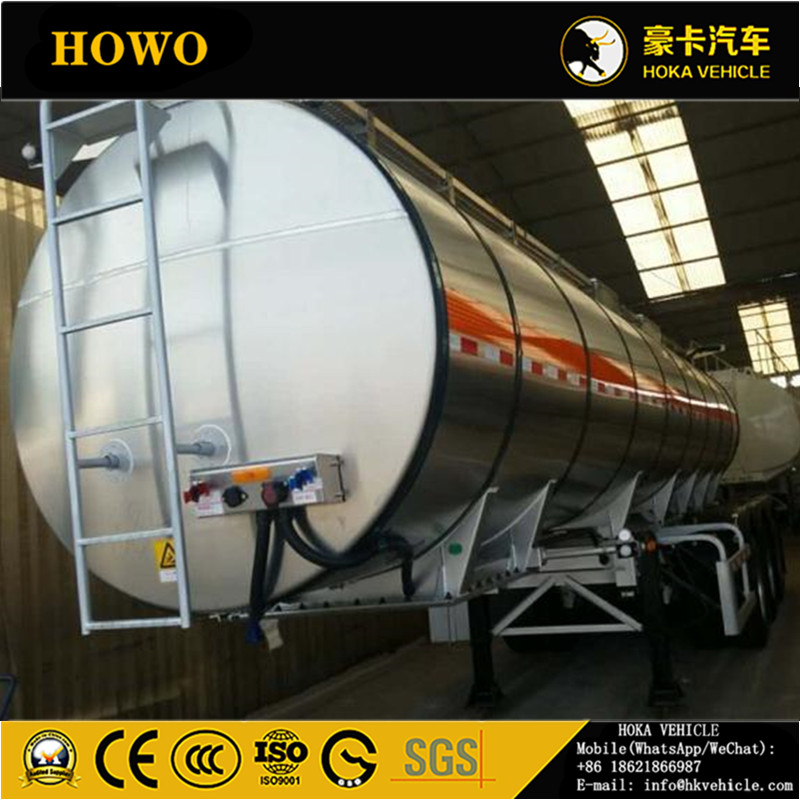

Ladder |
Front Design. |
|
Tool Box |
1000mm Length, 1 pcs. |
|
|
Rear Bumper |
1 set. |
|
|
Side Under Run |
1 set. |
|
|
Fender |
Black Plastic Type, 6 pcs. |
|
|
Spare Tire Rack |
Q345, 1 pcs. |
|
|
Rail |
Pneumatic Hand Rail, Both sides, Aluminium Type. |
|
|
Lights |
24V, LED Lights, Phillips Cables; |
|
|
Fire Extinguisher & Bracket |
8 kg type, 2 sets. |
|
| Delivery time |
Within 75 days once prepayment received. |
|
