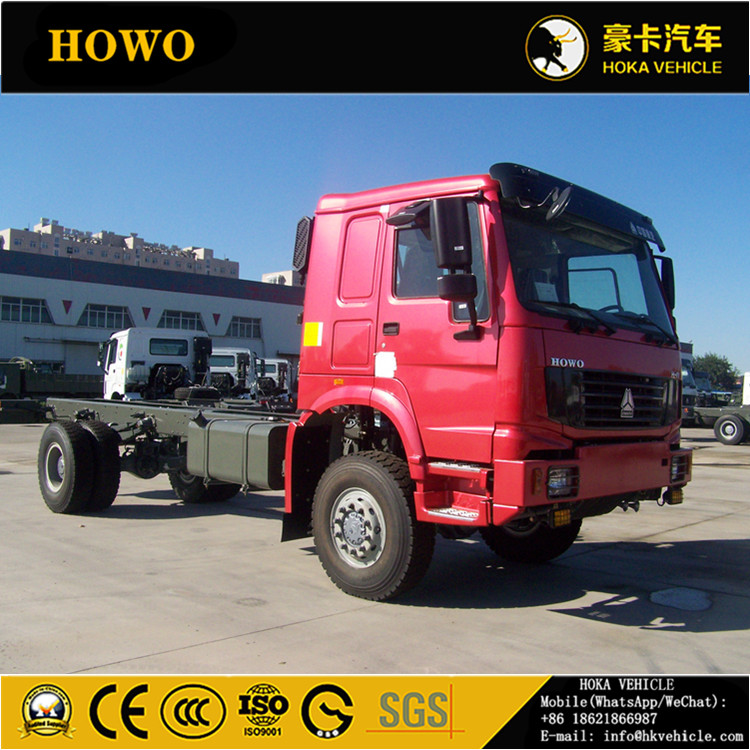

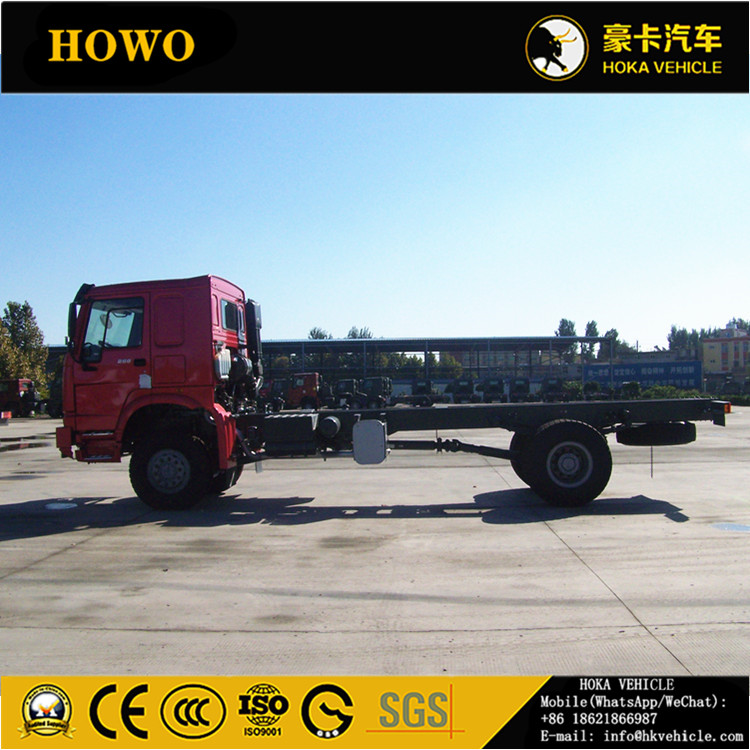

SINOTRUK HOWO 4X4 CARGO TRUCK CHASSIS

HOWO truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.

ꄴPrevious： null

ꄲNext： SINOTRUK HOWO 8X4 FLATBED CARGO TRUCK WITH SIDEWALL

Model		ZZ2167M4627A
Cabin		HW76 Long Cabin, with two seats and one bed, with Air Conditioner and electric window.
Engine	Model	WD615.87
	Horse Power (Hp/rpm)	290/2200, Euro II Emission Standard
	Max.Toruqe(Nm/rpm)	1150/1100-1600
	Displacement L	9.726
	Type	6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine
Transmission		HW15710C, 10 speeds forward and 2 speeds reverse.
Front Axle		HF7, Steering with double T-cross section beam, Loading Capacity: 7,000kgs
Driving Axle		ST16, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. ratio: 4.8. Option: 4.42
Suspension		Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer
Steering System		ZF8118, Hydraulic steering with power assistance
Brake System		Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake
Tire		12.00R20
Fuel Tank Capacity (L)		400L Diesel Tank
Kurb Weight (kg)		7,200
Loading Capacity (kg)		12,800
Gross Vehicle Weight (kg)		20,000
Overall Dimension(LWH)(mm)		7200×2500×3100
Wheelbase(mm)		4600
Max. Speed (km/h)		90
